Behind The Cabinet Single Unit

Behind The Mirror Cabinet Single Unit

Product Code: BTC-SINGLE

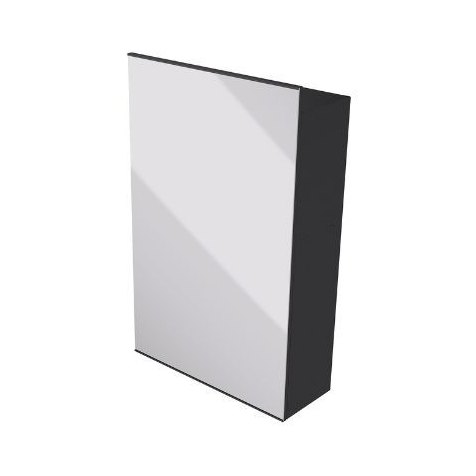

The behind the mirror single cabinet is a slimline fully customisable cabinet that contains a soap dispenser and either a hand dryer or paper towel dispenser. The 600mm wide cabinet provides a choice of positions to place the dispensers exactly where users need them.

The cabinet is quick and easy to install, simply fix the wall brackets in place, attach the cabinet to the brackets and install the dispensers in position. Finaly the door and mirror is attached to the cabinet. The cabinets can be installed as a single or multiple units and bespoke filler cabinets are available to either space the cabinets further apart or as infill end sections.

• Single cabinet 600mm wide.
• Manufactured from stainless steel and powder coated black for durability.
• The 600mm cabinet provides 1.5 dispenser positions.
• 1 soap dispenser (0.5 positions) and paper towel dispenser or hand dryer (1 position).
• The cabinet door is mirrored and supported by gas struts for ease of opening and closing.
• The cabinet door has a lock on the base of the unit to prevent unauthorised opening.
• Integral shelf to store spare consumables for quick replenishing.
• Bespoke filler sections are available.
• 1200mm double units also available.

Unit Specification:

• 240V hand dryer or manual paper towel dispenser.
• Hands free 1.5 litre liquid soap dispenser with 6V AC/DC transformer or battery operation.

Soap Viscosity and pH requirements:

• Viscosity Range (mPa·s or cP): 100 – 3k.
• pH Range: 5.5 ~ 8.5.

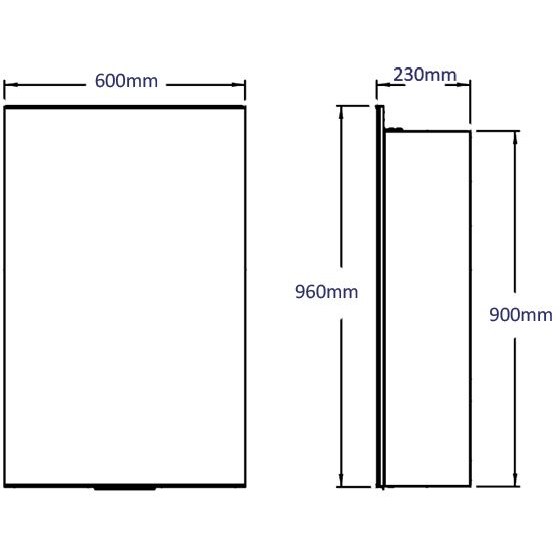

Dimensions:

• Width: 600mm.
• Height: 960mm
• Depth: 230mm

Delivery

• To order usually 4 weeks.

Options:

• 240v hand dryer or paper towel dispenser.
• Mains or battery operated no touch soap dispenser.
• Purpose made infill panels available to fill in gaps.

Prices

Due to the nature of the products and the amount of options available please contact us for prices by email on enquiries@washwareessentials.co.uk or by phone on 01275 400456.

**All pictures shown are for illustration purpose only and may be subject to change without notice. Actual product may vary due to product enhancement.
All dimensions shown are for guidance only and may be subject to change or alteration without notice. All items manufactured or purchased separately from a third party to fit our products should be checked against the actual dimensions of the physical product before purchase. We will not be liable for third party costs and consequential loss associated with the items not fitting third party components.**
