H Pattern Laboratory Tap

H Pattern Laboratory Tap

Product Code ARB-HLBTAP

• H Patter mixer tap with aerator nozzel.
• WRAS Approved.
• Swivel swan neck, hot and cold balanced flow mixer.
• Standard laboratory tap for all appications where a header tank supply is present.
• Removable or full-bore nozzles are availble on request.
• All brass body, coated in Rilsan plasitc.
• Body colour is Ral 9016 White, Green handle.
• Chemical resistant plastic ABS Handwheel.

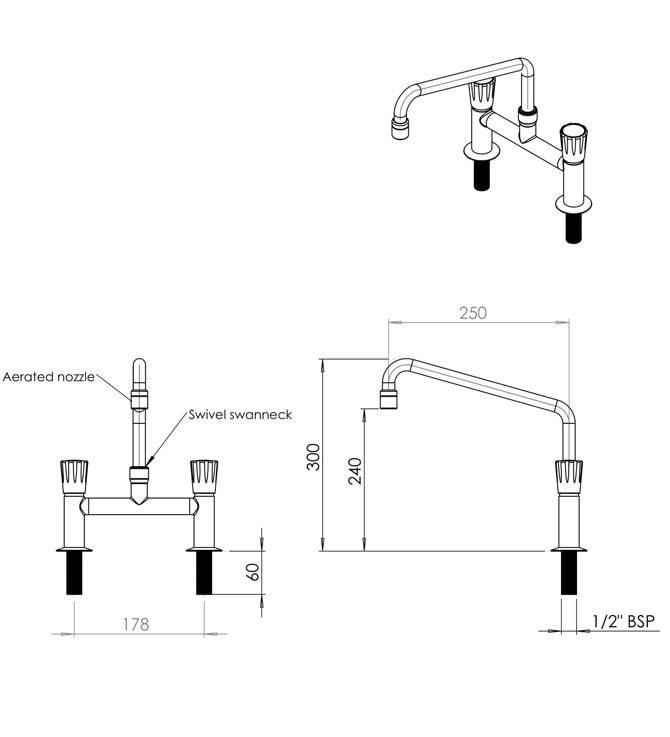

Connection and Mounting

• 2 x 1/2" BSP male flat ended shank x 60mm long with back nut.
• 2 x 22mm tap holes and 178mm centres.

Pressures

• Maximum pressure: 100PSI (Recommended 20PSI).
• Flow rate: 20PSI = 35 Liter/min.

Delivery

• From stock usually 3 to 5 working days.
