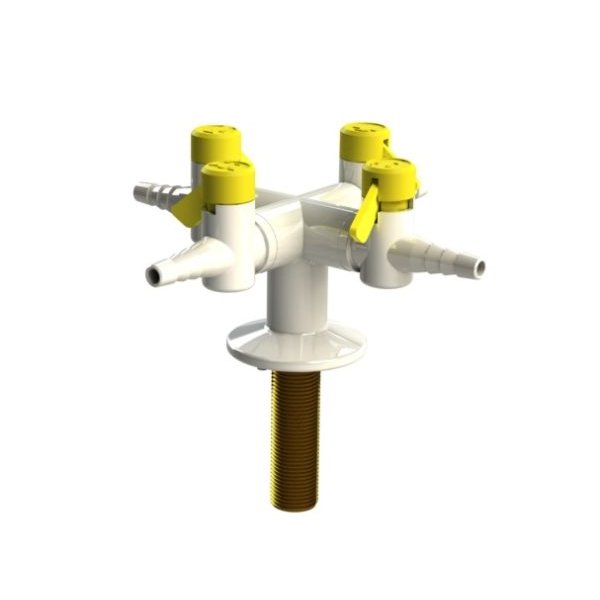

Four Way Bench Mounted Gas Tap

Four Way Bench Mounted Gas Tap

Product Code ARB-4GTAP

• Four way high visibility gas tap with fixed serrated nozzles and drop levers.
• Suitable for both natural and LPG gas applications.
• Non-Return valve version available in options (fitted with non-return valves and nozzle restrictors).
• All brass body, coated in Rilsan plastic, which is self-extinguishable and low flammability.
• Body colour is (Ral 9016) white.
• The appliance should be used to size pipe work not the gas valve.
• British Gas/BSI certified.
• Please note these items should only be installed by a person competent to do so.

Connection and Mounting

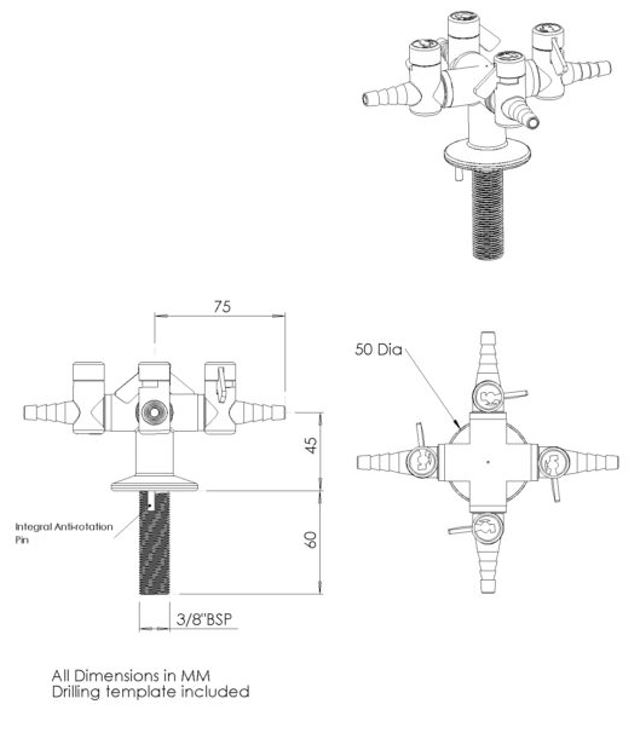

• 3/8" BSP male flat ended shank x 60mm long with back nut.
• Comes as standard with an anti-rotation pin to prevent the tap being twisted.
• 2 holes required 1 x 17mm tap hole and 1 x 5mm for the anti-rotation pin, a template is supplied with the tap.
• Can be used with natural and LPG gases.

Pressure

• Maximum pressure: 20 - 25Mbar.
• Flow rate: 20Mbar = 1 Cubic meter/hour per nozzle.

Delivery

• From stock usually 3 to 5 working days.
