HTM64 Compliant Mixing Valve Tap

Thermostatic TMV3 Mixing Valve Tap Wall Mounted

Product Code 6761

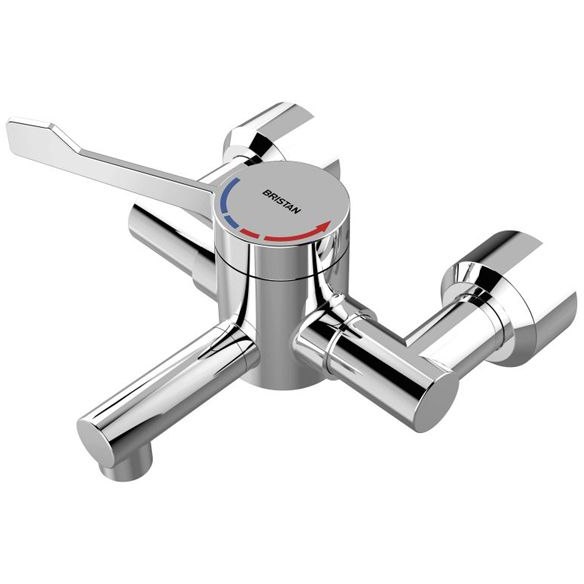

• Hospital lever operated thermostatic mixing valve tap with high polish chrome finish.
• Wall mounted model.
• NHS D08 compliant (formally HTM64 type TB H2a and HBN 00-10 compliant).
• TMV3 approved.
• The tap has a safe touch surface temperature to guard against burns.
• Integral flushing system assists legionella control.
• Fully draining removable spout.

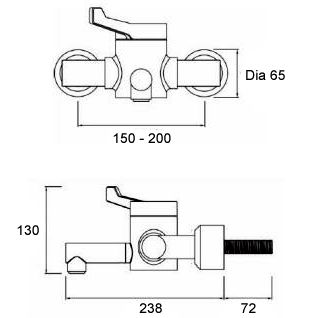

• Adjustable tap hole centres from 150mm to 200mm.
• Automatic thermostatic shut off in the event of hot or cold water supply failure.
• Long lever for wrist or elbow operation, 180 degree sequential action.
• Designed to comply with the NHS D08 and former HTM64 requirements for use in hospitals, healthcare and commercial applications.
• Incorporating a TMV3 compliant mixing valve.
• 22 mm tap holes with 150-250 mm centres required.

Temperatures

• Factory preset temperature: 43 degrees C.
• Maximum hot water supply temperature: 80 degrees C.

Pressures

• Maximum dynamic pressure: 5 bar.
• Maximum static pressure: 10 bar.

Delivery

• From stock usually 3 to 5 working days.
