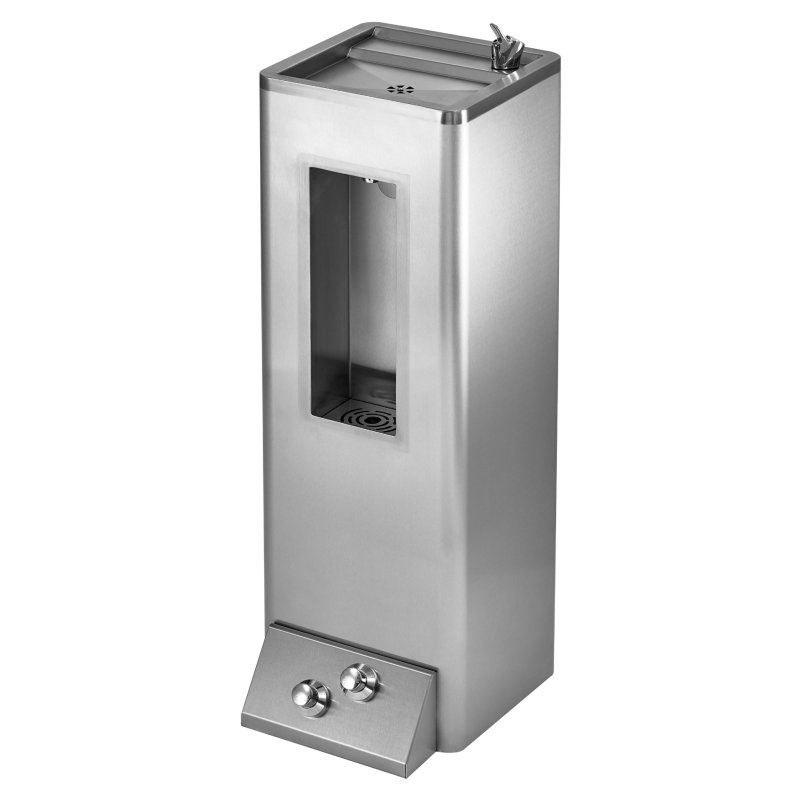

Foot Operated Bottle Filler and Drinking Fountain

Foot Operated Drinking Fountain With Water Bottle Filler

Product Code DFBF-FA

• Foot operated drinking fountain with built in water bottle filling unit.
• Individual foot operated buttons for bottle filler and drinking fountain.
• Foot operation reduced the need for users to touch the controls.
• Manufactured from stainless steel with satin polish finish.
• Back to wall and floor standing installation.
• Available as a free standing pedestal unit by adding a rear cover panel.
• Manufactured from stainless steel with a matt polished finish.
• WRAS approved water path fittings.
• Rounded front corners for safety.
• Floor and wall mounting points with a full adult height undershroud to conceal all plumbing.
• Complete with two 32mm waste fittings with flexible waste pipes joined with a T piece to leave a single outlet (requires a trap).
• 15mm compression fittings on foot valves.
• Lockable side door for and large rear opening for access to the plumbing connections and fixing points.

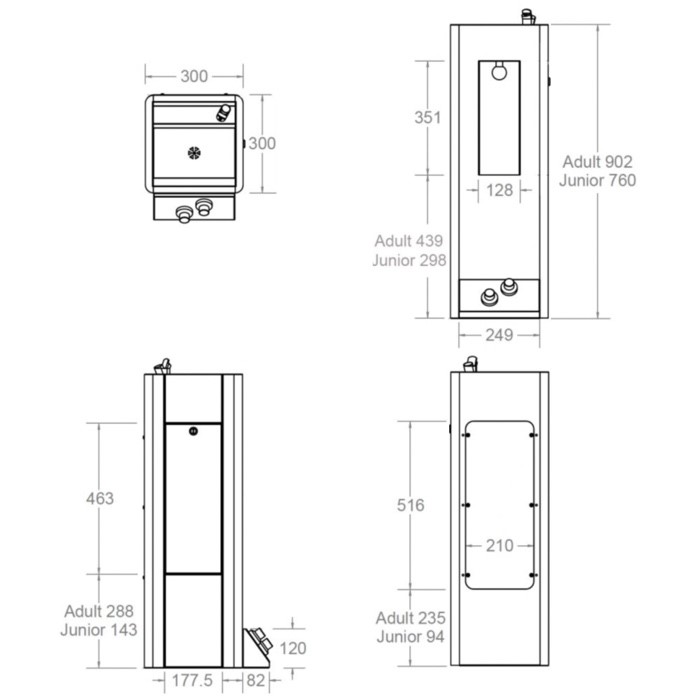

Size

• 900mm high.
• 300mm front to back.
• 300mm wide.
• Rear access hole 235mm from floor level.

Delivery

• From stock usually 2 to 3 working days.

Junior 760mm height model also available.

Options

• Rear cover panel to make unit freestanding.
• Junior height model.
